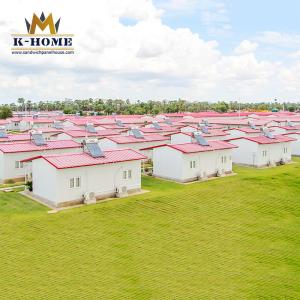

Modular Two Bedroom Refugee House Portable Accommodation Camp Fast Build And Low Cost
I. Introduction The T type prefab house is the temporary buildings that can be installed quickly by 4 people a day for 130 ㎡. A 40-HQ shipping container can carry about 300 ㎡.
It has an A1 class fire resistance, could anti-wind 10 grade, and could anti-earthquake 7 grade. With a low cost and easy transportation method, it has been used all over the world. II. Design description
This refugee home is designed with 70 sqm for a famaily. Each house is designed with two double bed bedrooms, a kitchen, a toilet, and a living room for people having fun.
III. Layout description
| 1 | Building area | 70 sqm | | 2 | Capacity | 2-4 people | | 3 | Furniture facilities | Bed, table with chair, wardrobe, kitchen cupboard, toilet, shower, washbasin, AC, sofa, tea table, etc. |
IV. Main material specification | Part 1:Roof System | | Roof Panel | 50mm rock wool sandwich panel; | | Color is common color: scarlet/blue | | Herringbone | Galvanized square tube: 40*80*1.4mm; | | Firm, strong corrosion resistance and has a long service life | | Roof Purlin | Galvanized square tube: 40*60*1.4mm; | | Strong, durable, corrosion resistance and has a long service life. | | Ring Beam | Galvanized square tube: 40*60*1.4mm; | | Firm, strong corrosion resistance and has a long service life | | Ceiling | Steel plate ceiling | | Strong and corrosion resistance | | Part 2:Steel Frame (Bottom Steel Structure+Column+Bolt ) | | Bottom Steel Structure | 1. Foot support: 40mm(Width)*80mm(Length) | | 2. Bottom purlin: 40mm(Width)*80mm(Height) | | Column | Galvanized square tube: 80*80*2.0mm; | | Safe, strong and corrosion resistance, | | The color is glossy and can last for a long time. | | Bolt | High strength galvanized steel bolt | | Firm, strong and corrosion resistance | | Part 3: Wall Panel | | Wall Panel | 50mm rock wool sandwich panel,( 0.38mm steel plate on both sides); | | Color is a common color: white grey. |
|
