Temporary Prefab Steel House Homeless Accommodation Galvanized

Name: Temporary Prefab Steel House Homeless Accommodation Galvanized
Brand: KHOME
Price: 50 USD

Temporary Prefab Steel House Homeless Accommodation Galvanized Manufactures

Brand Name : KHOME

Model Number : KHPSH

Certification : ISO, CE, SGS, PVOC

Place of Origin : Henan, China

MOQ : 200 Square Meters

Price : USD50/m2~USD80/m2

Payment Terms : L/C, T/T

Supply Ability : 30000 Square Meters/month

Delivery Time : 30 days

Packaging Details : Loaded Into 20'GP/40'HQ Shipping Container

Usage : Warehouse, Dormitories, Temporary Offices, Workshop

Surface Treatment : Painting and Galvanized

Cladding Material : Steel Color Sheets/Sandwich Panels

Main Steel Frame : C-shape Steel + Square Tube

Connection Form : Bolts and Screws Connection

Size : According to Customers' Requirement

OEM : Accepted

Features : Lower Cost

Lower Cost : 8 Degree Anti-Earthquake

Transport Package : 100-130 square meters house/40'HQ

Keywords : One Bedroom Prefab Home, Affordable Steel Kit Homes, Small Modular Homes

Contact Now

Cheap Temporary Prefab Steel House Homeless Accommodation

Our temporary prefab steel houses are designed to provide houses for homeless or low income people.
We can fully equipped with you all necessary furniture.
Our goal is to provide our customers with a turnkey solution.

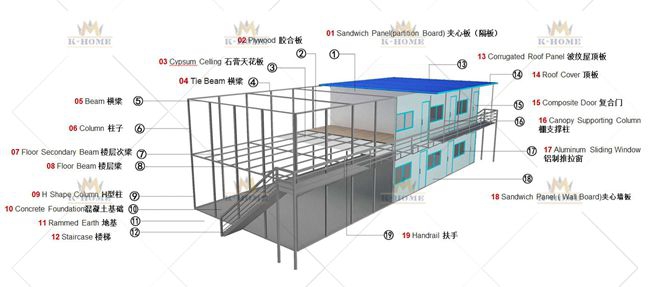

I. Steel Structure
1.	Ground beam Material: Galvanized steel
2.	Corner Column Material: Square tube Powder spraying
3.	Wall column Material: Square tube Powder spraying
4.	Gable column Material: Square tube Powder spraying
6.	Lintel Material: black strip steel / galvanized steel sheet Powder spraying (Black steel strip)
7.	Roof Purlin Material: Galvanized steel
8.	Herringbone beam Material: Galvanized square tube + Galvanized Angle iron
II. Accessories:
1	Floor Flashing Shaped Groove Function: Put between the wall panel and ground beam, block the inflow of rainwater Material: Galvanized steel plate
2	Eave Cover Function: Seal the exposed part of the roof rock wool and guide the rainwater down Material: Galvanized steel plate
3	Outside Ridge Cover Function: Cover the roof ridge above sandwich panel Material: Galvanized steel plate
4.	Inner Ridge Cover Function: Cover the roof structure ridge on the Herringbone beam Material: Galvanized steel plate
5	50mm U Shaped Steel Groove Function: Fix the partition panel Material: Galvanized steel plate
6	Buckle cap Purpose: Used in the joints of roof sandwich panels to prevent rainwater from infiltrating Material: Galvanized steel plate
7	Bolts, Screws and Glue The choice of screw is important, good quality screws easy to be insert in the steel will help installation work; Otherwise, will waste time for insert the screw.
8	Galvanized Steel plate corner Function: Seal the corner of the partition board and the wall Material: 0.4mm Galvanized steel plate
III. Maintenance and Decoration Material
1.		Sandwich wall panel Material: 50kg/m3 density rock + 0.4mm galvanized steel plate on both sides
2.		Sandwich roof panel Material: 50kg/m3 density rock + 0.4mm galvanized steel plate on both sides
3.		Door Material: 0.45mm steel plate on both Middle: Honeycomb panel Door Frame: 0.8mm steel Lock: Lock with handle type (Easy to open and close )
4.		Window Window frame: 8.0mm plastic steel Glass: 2.2mm single glass
5.		Ceiling Material: 7.5 mm Gypsum Ceiling with accessories

Temporary Prefab Steel House Homeless Accommodation Galvanized

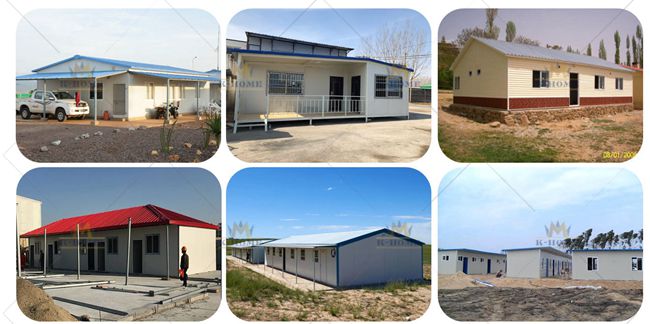

Project Show

Temporary Prefab Steel House Homeless Accommodation Galvanized
